Embedded SuperServers
Optimized for a wide variety of applications and environments
- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket P LGA-3647
- Processor Supported
- Xeon Silver
- Xeon Gold
- Xeon Platinum
- Xeon Bronze
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C622
- Memory
- Maximum Memory Supported
- 1.50 TB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2933/PC4-23466
- Total Number of Memory Slots
- 6
- Controllers
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- Display & Graphics
- Graphics Controller Model
- AST2500
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 3.0 Ports
- 4
- Number of SATA Interfaces
- 4
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 600 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Box PC
- Height
- 4.3"
- Width
- 10.5"
- Depth
- 16"
- Weight (Approximate)
- 17.99 lb
- Miscellaneous
- Package Contents

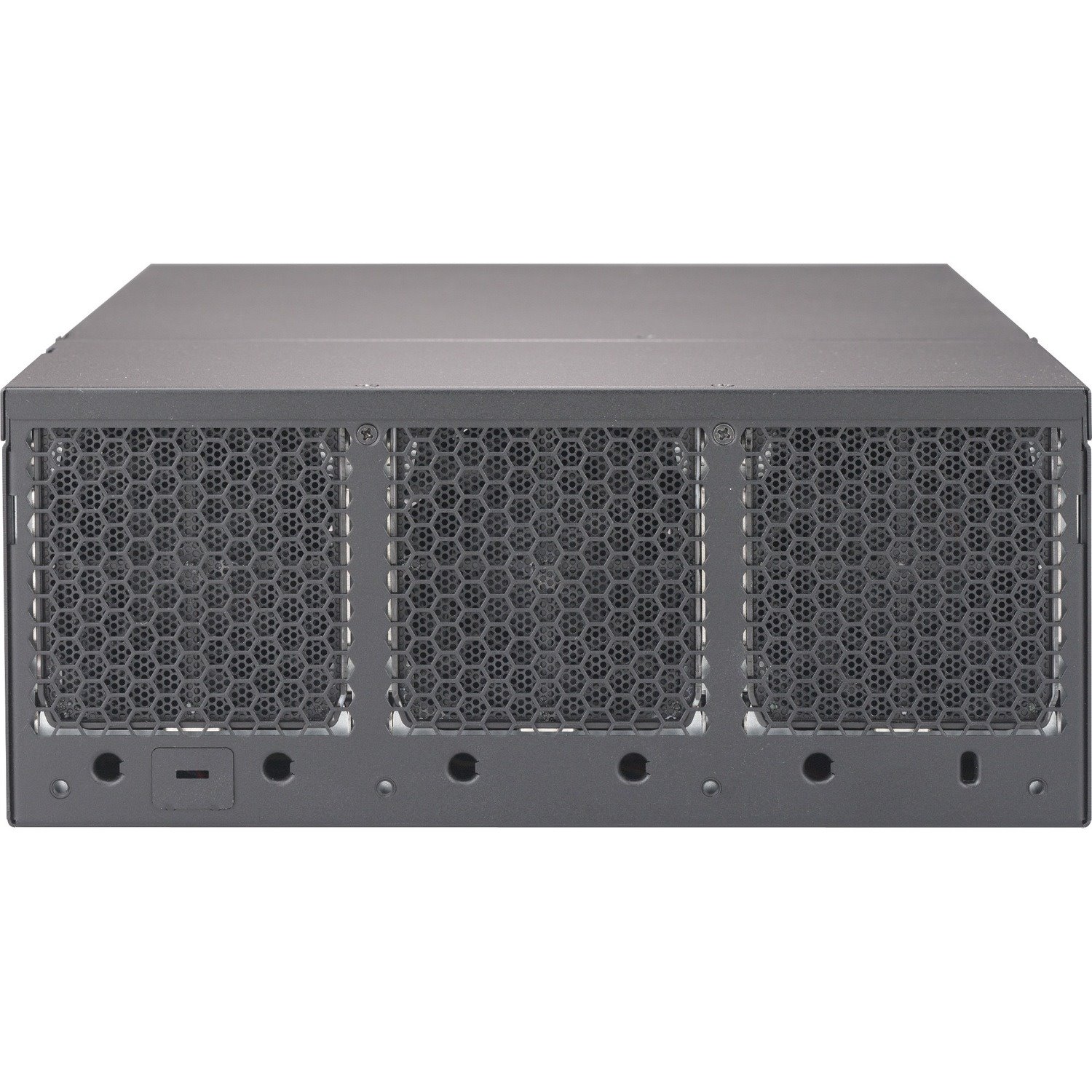

- SuperServer E403-9P-FN2T (Black)
- 1 x Super MBD-X11SPW-TF Motherboard
- 1 x Black 2.5U Embedded Server Box W/O PWS
- 1 x AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
- 2 x Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
- 4 x CBL-SAST-0641 / 4 / SATA,INT,ROUND,ST-RA,45CM,30AWG
- 1 x USB 3.0(F) Type A 2x to USB3.0 20pin,73CM,30AWG
- 3 x 80x80x38 mm, 13.5K RPM Cooling Fan for E403IF
- 1 x Fan bracket with extension cable for 3x 8038 hot-swap,E403
- 1 x 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin)
- 1 x Air shroud for CSE-E403iF+ X11SPW
- 1 x Air shroud
- 1 x 1U 600/680W MULTI OUTPUT PWS 80+ GOLD
- 1 x 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
- 1 x CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
- 4 x Fixed HDD tray 4x 2.5in for CSE-E403iF
- 1 x Fixed HDD tray 4x 2.5in for CSE-E403iF
- 1 x Front control board Dual color LED(FP826-D)forSC826,213,216,219
- 1 x Front panel adaptor board (TB826) forSC826,213,216,219
- 1 x Black riser card bracket 3x slot for WIO M, CSE-E403iF
- 1 x I/O Shield support 2x USB for CSE-E403iF
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
