- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Packaged Quantity
- 1
- Product Type
- Grounding Kit
UL Listed grounding strips shall be installed on a back equipment mounting rail of each rack and cabinet. The strip shall be sized to ensure that each Rack Unit (RU) has a bonding location. Grounding strips shall be bonded to the rail with paint piercing hardware. Antioxidant shall be applied to the bonding hardware before installation. The bonding strip shall be labeled as a grounding location. The Unit Bonding Conductors (UBC) for each piece of equipment (ITE) shall be bonded directly to the grounding strip.
- Technical Information
- Recommended Usage
- Rack Cabinet
- Physical Characteristics
- Dimensions

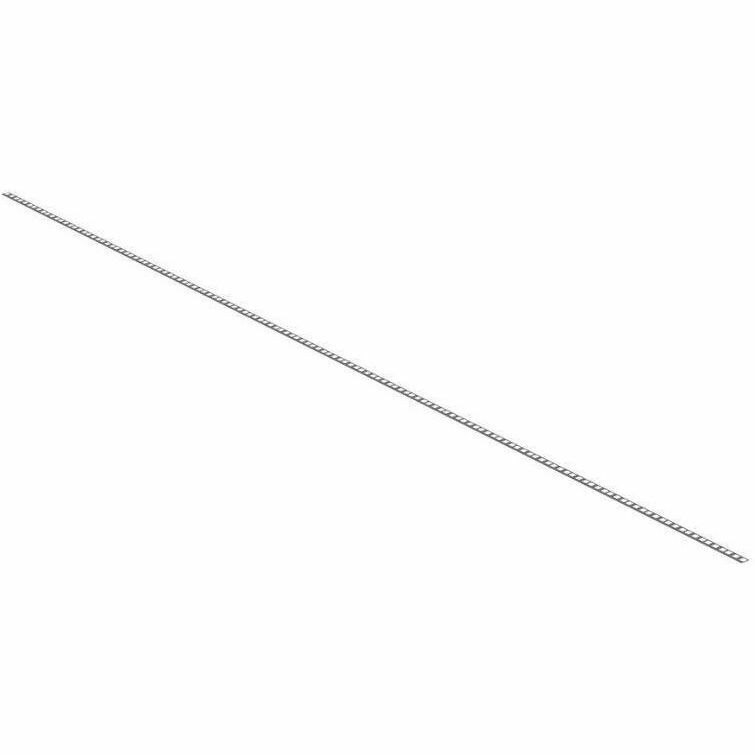

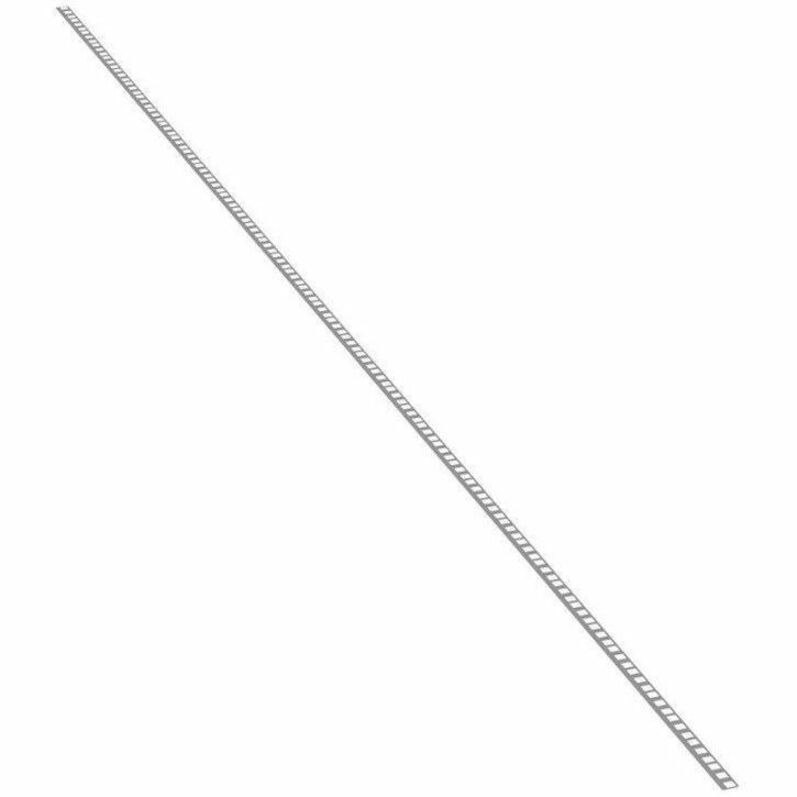

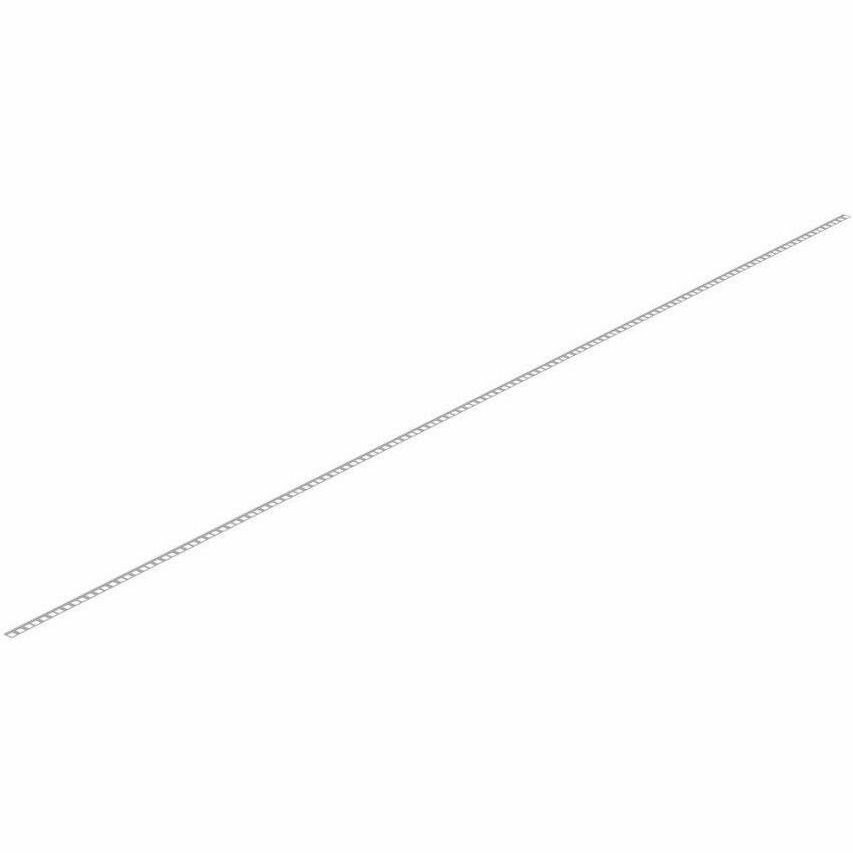

Grounding strip:
- 83.90" (2.1m)
length:
- 67" (17mm)
width:
- .03" (.76mm)
thickness:
- .16 oz. (5cc)
Overall Length (In.):
- 83.9
Overall Thickness (In.):
- 0.03
Overall Width (In.):
- 0.67
- Miscellaneous
- Compatibility
- Grounding strip
- antioxidant
- 1 x grounding sticker
- 3 x cage nut bonding studs
- 8 x #12-24 bonding nuts
- 3 x strip clips
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Restriction of Hazardous Substances (RoHS) 3
