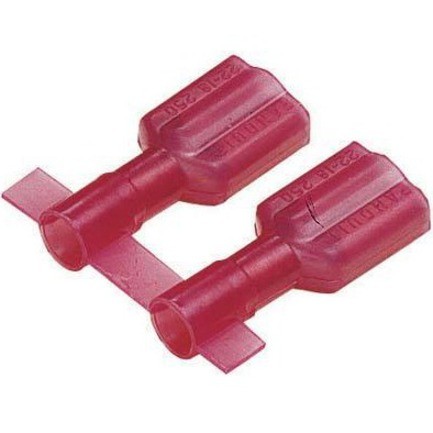

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.

• General Information
• • Manufacturer
  • PANDUIT CORP
  • Manufacturer Website Address
  • http://www.panduit.com
  • Brand Name
  • Panduit
  • Packaged Quantity
  • 3000
  • Product Type
  • Terminal Connector

• Warranty
• • Limited Warranty
  • 1 Year
