- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Packaged Quantity
- 10
- Product Type
- Terminal Connector

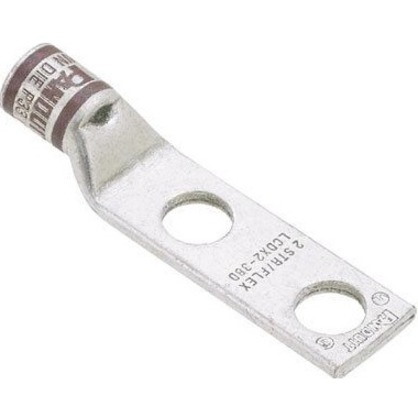

Flex Conductor, Two-Hole, Standard Barrel with Window LugFor Use with Flexible, Extra-Flexible, and Code Stranded Copper Conductors
Type LCDX
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- American Bureau of Shipping approved
- Available with NEMA hole sizes and spacing
- Technical Information
- Connector Type
- Barrel Plug
- Connector Details
- Barrel Plug
- Connector Plating
- Tin
- Features
- Flexible
- Stranded
- Physical Characteristics
- Color Family
- Purple
- Product Color
- Purple
- Height
- 1.2"
- Length
- 2.7"
- Miscellaneous
- Environmentally Friendly
- Yes
