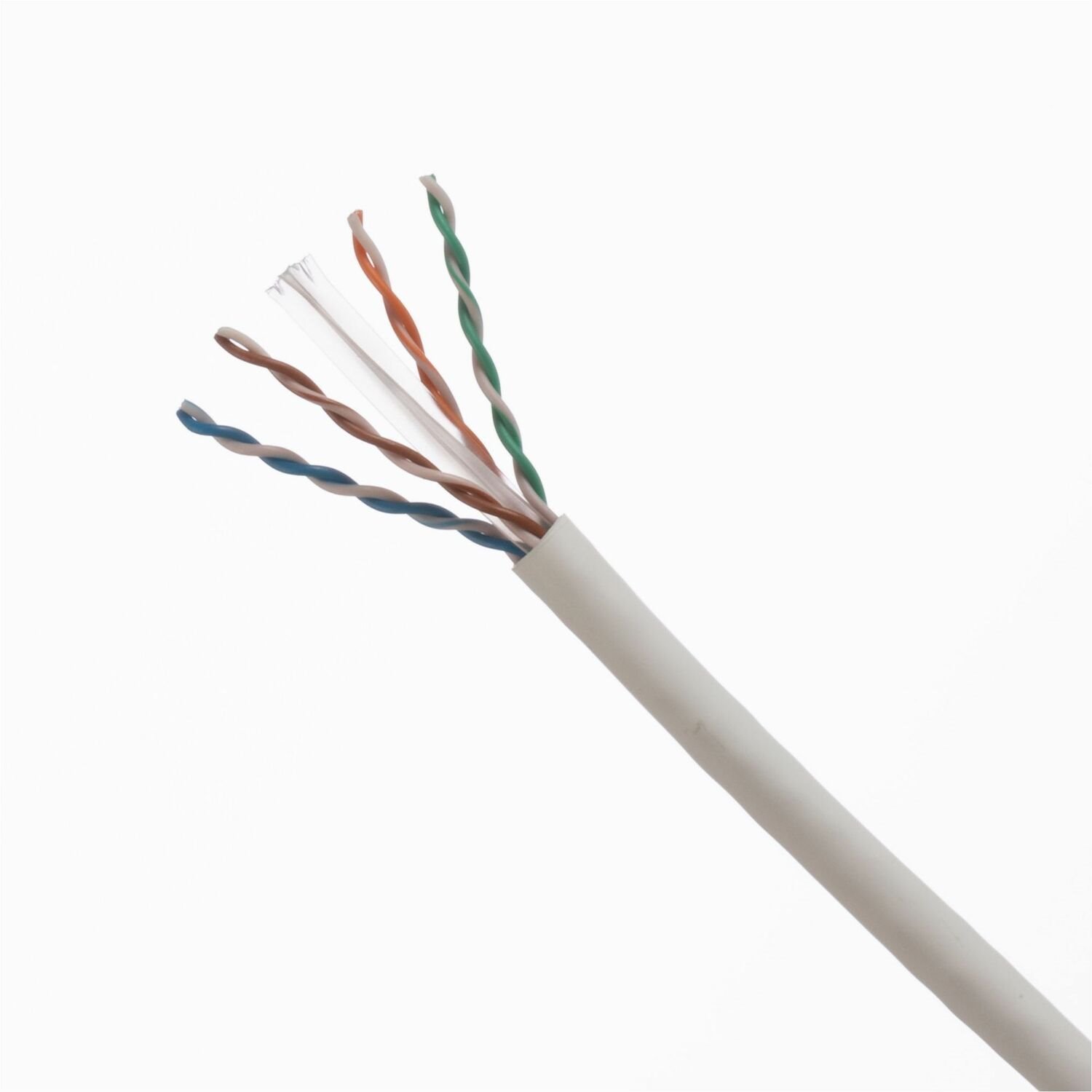

The TX6000™ Cat 6 UTP copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin (CMP) insulation. The copper conductors shall be twisted in pairs, separated by a cross-divider and covered by a low smoke, flame-retardant, plenum-rated, violet jacket.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- PanNet
- Product Line
- TX6000
- Product Type
- Network Cable
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Cable Type
- Category 6
- Cable Length
- 1000 ft
- Connector Type on First End
- Bare Wire
- Connector Type on Second End
- Bare Wire
- Shielding
- No
- Jacket Type
- CMP
- Plenum
- CMP-LP
- Device Supported
- Network Device
- American Wire Gauge
- 23 AWG
- Data Transfer Rate
- 10 Gbit/s
- Number of Conductors
- 8
- Number of Pairs
- 4
- Features
- Unshielded Twisted Pair (UTP)
- Flame Retardant
- PoE
- PoE+
- PoE++
- Bendable
- Physical Characteristics
- Product Color
- Violet
- Jacket Color
- Violet
- Product Material
- Copper
- Insulation Material
- Fluorinated Ethylene Propylene (FEP)
- Polyolefin
- Jacket Material
- Fluorinated Ethylene Propylene (FEP)
- Fire Resistant Polyvinyl Chloride (FR-PVC)
- Low Smoke Polyvinyl Chloride (LS PVC)
- Material Details
Copper - Cable, Conductor
- Weight (Approximate)
- 28 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
