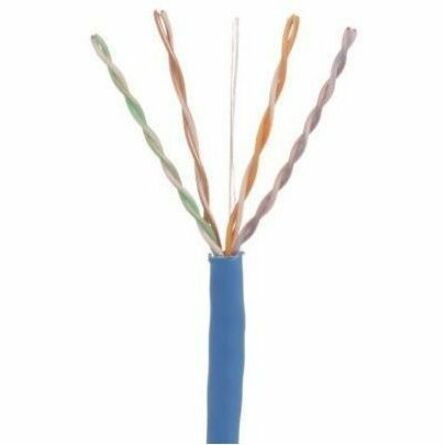

The TX6™ Cat 6 U/UTP copper cable is constructed of 24 AWG copper conductors with FEP/HDPE insulation. The copper conductors are twisted in pairs. All four pairs are surrounded by a PVC flame-retardant jacket. The blue, plenum (CMP) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- PanNet
- Product Line
- TX6
- Product Type
- Network Cable
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Cable Type
- Category 6
- Cable Length
- 1000 ft
- Connector Type on First End
- Bare Wire
- Connector Type on Second End
- Bare Wire
- Shielding
- No
- Jacket Type
- CMP
- Plenum
- CSA FT6
- Device Supported
- Network Device
- American Wire Gauge
- 24 AWG
- Data Transfer Rate
- 10 Gbit/s
- Number of Conductors
- 8
- Number of Pairs
- 4
- Features
- Unshielded Twisted Pair (UTP)
- Flame Retardant
- PoE
- Bendable
- Physical Characteristics
- Product Color
- Blue
- Color Details
Blue - Cable
- Product Material
- Copper
- Insulation Material
- Fluorinated Ethylene Propylene (FEP)
- High-density Polyethylene (HDPE)
- Polyolefin
- Jacket Material
- Polyvinyl Chloride (PVC)
- Fluorinated Ethylene Propylene (FEP)
- Low Smoke Polyvinyl Chloride (LS PVC)
- Fire Resistant Polyvinyl Chloride (FR-PVC)
- Material Details
- ? Copper - Cable, Conductor
- Weight (Approximate)
- 27 lb
- Miscellaneous
- Country of Origin
- United States
