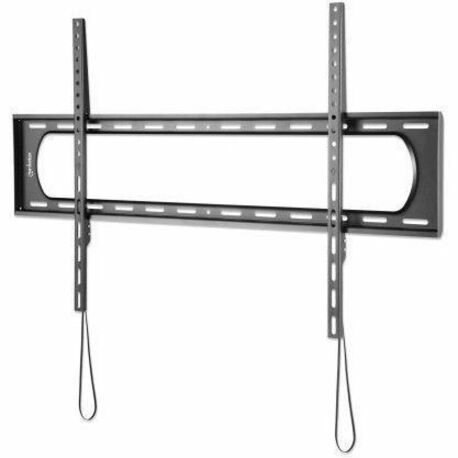

Slim Ultra Heavy-Duty XXL TV Mounting Bracket - strong mount for flush-as-possible big-screen TV installations
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This ultra-slim TV bracket extends only 35 mm (1.4 in.) from the wall. It's constructed of high-quality, powder-coated steel to fit flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
- General Information
- Manufacturer
- IC INTRACOM
- Manufacturer Website Address
- http://www.icintracom.com
- Brand Name
- Manhattan
- Packaged Quantity
- 1 Pair
- Package Type
- Retail
- Product Type
- Mounting Bracket
- Product Information
- Device Supported
- TV
- LED TV
- OLED TV
- Plasma TV
- Digital Signage Display
- Flat Panel Display
- Curved Screen Display
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 264.55 lb
- Minimum Screen Size Supported
- 60"
- Maximum Screen Size Supported
- 120"
- Features
- Heavy Duty
- Flat
- Durable
- Bubble Level
- Spring Lock
- Orientation
- Landscape
- Mount Profile
- Low Profile/Fixed
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- Powder Coated
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 50 x 50
- 75 x 75
- 100 x 100
- 100 x 150
- 150 x 100
- 100 x 200
- 200 x 100
- 150 x 150
- 200 x 200
- 200 x 300
- 300 x 200
- 200 x 400
- 400 x 200
- 300 x 300
- 300 x 400
- 400 x 300
- 600 x 200
- 400 x 400
- 600 x 300
- 400 x 600
- 600 x 400
- 700 x 400
- 800 x 400
- 600 x 600
- 800 x 500
- 800 x 600
- 900 x 600
- Product Material
- Steel
- Form Factor
- Wall Mountable
- Width
- 39.57"
- Depth
- 1.38"
- Length
- 24.61"
- Weight (Approximate)
- 6.97 lb
- Miscellaneous
- Application/Usage
- Residential
- Office
- Hospitality
- Classroom
- Conference Room
- Commercial
- Home
- Wall
