- General Information
- Manufacturer
- ATEN Technology Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- Video Extender Receiver

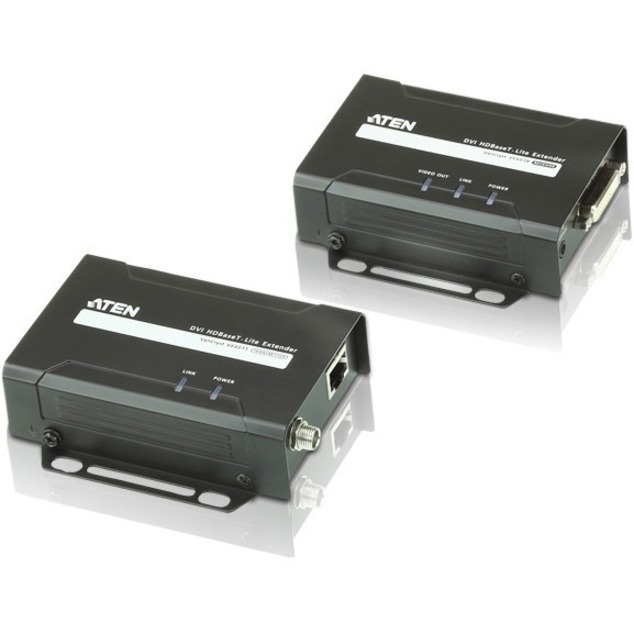

The VE601R DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
- Technical Information
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 229.66 ft
- Video
- Graphics Modes
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- DVI Out
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of DVI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6a
- Physical Characteristics
- Receiver Height
- 1.18"
- Receiver Width
- 3.43"
- Receiver Depth
- 4.02"
- Receiver Weight (Approximate)
- 8.80 oz
- Miscellaneous
- Package Contents
- Application/Usage
- A/V Equipment
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
